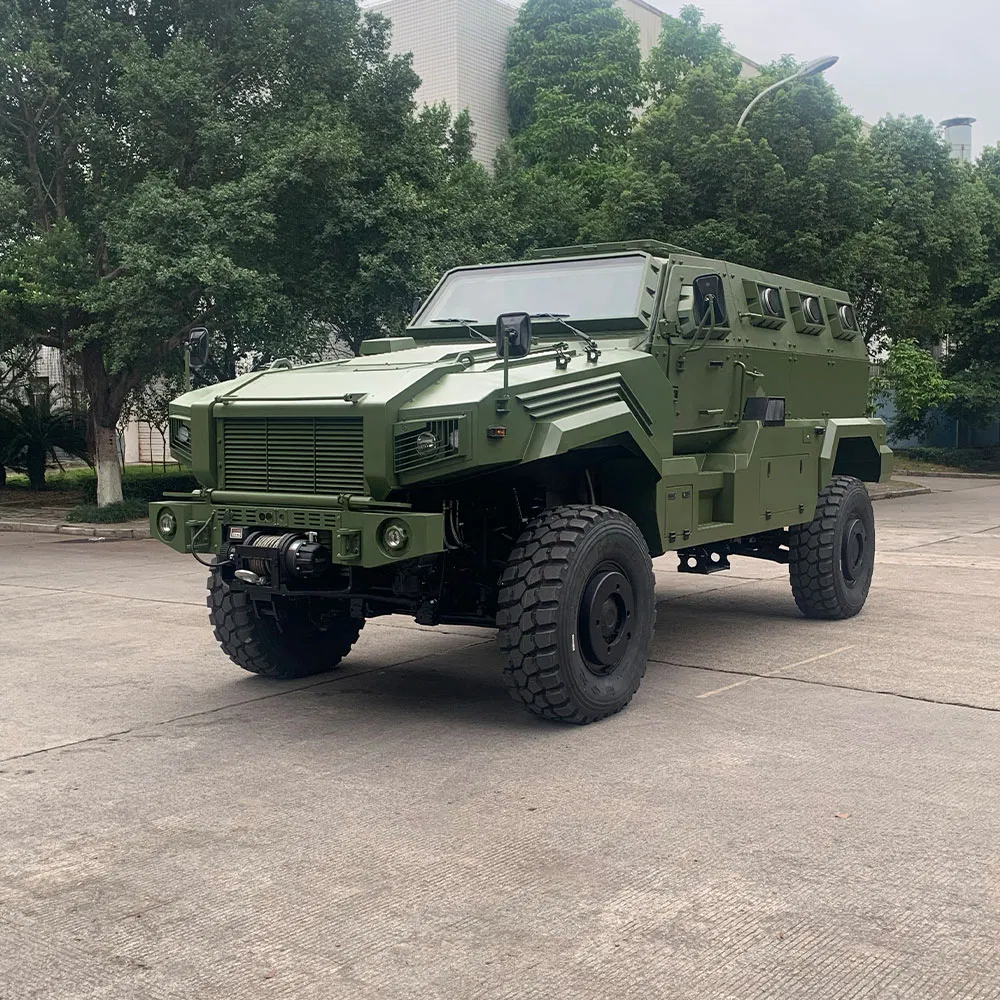

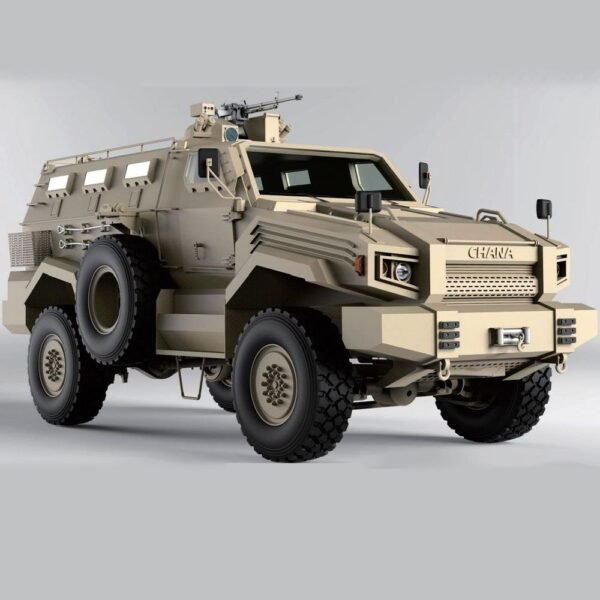

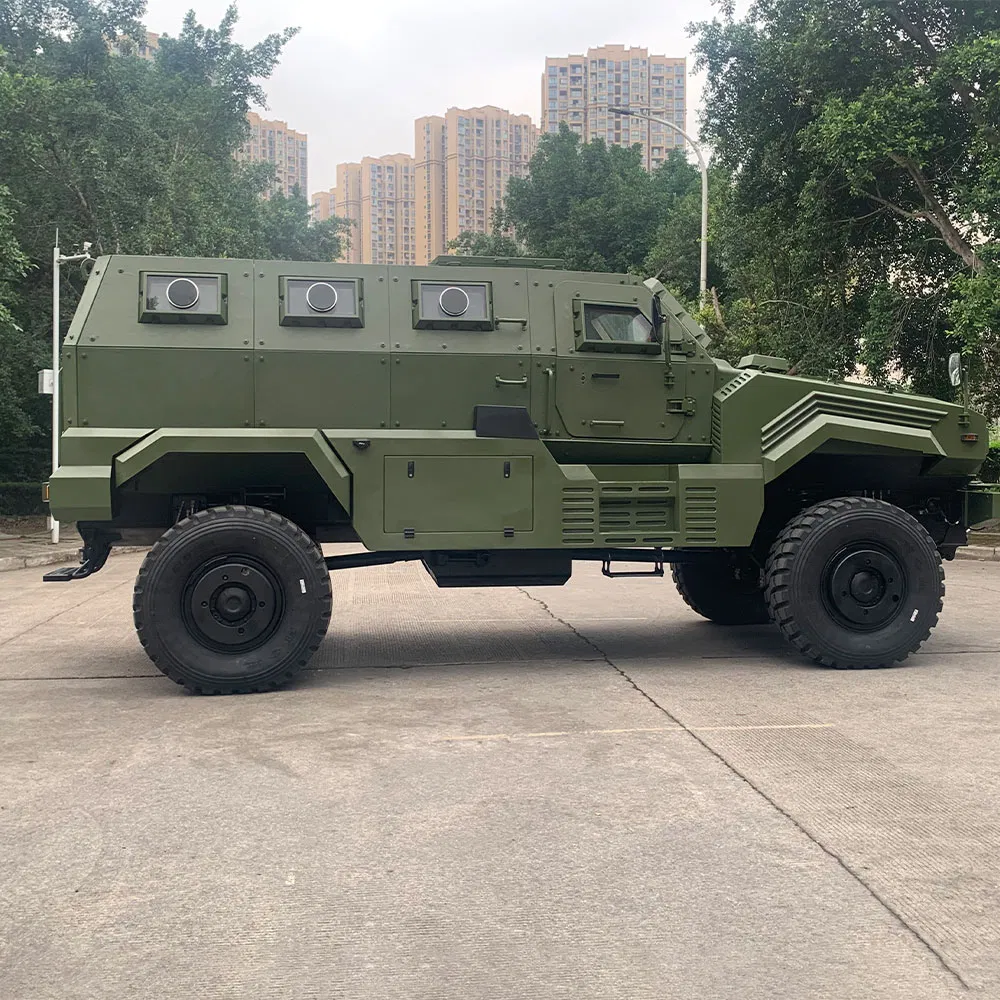

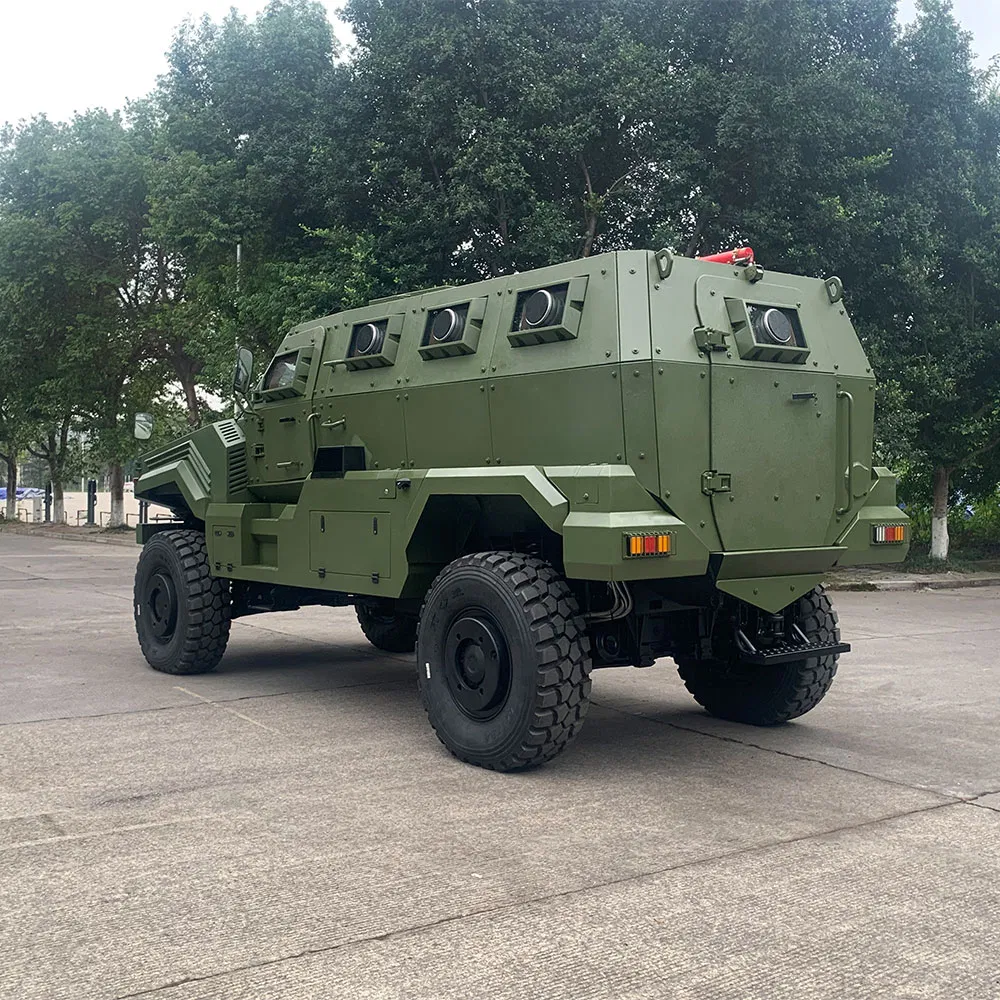

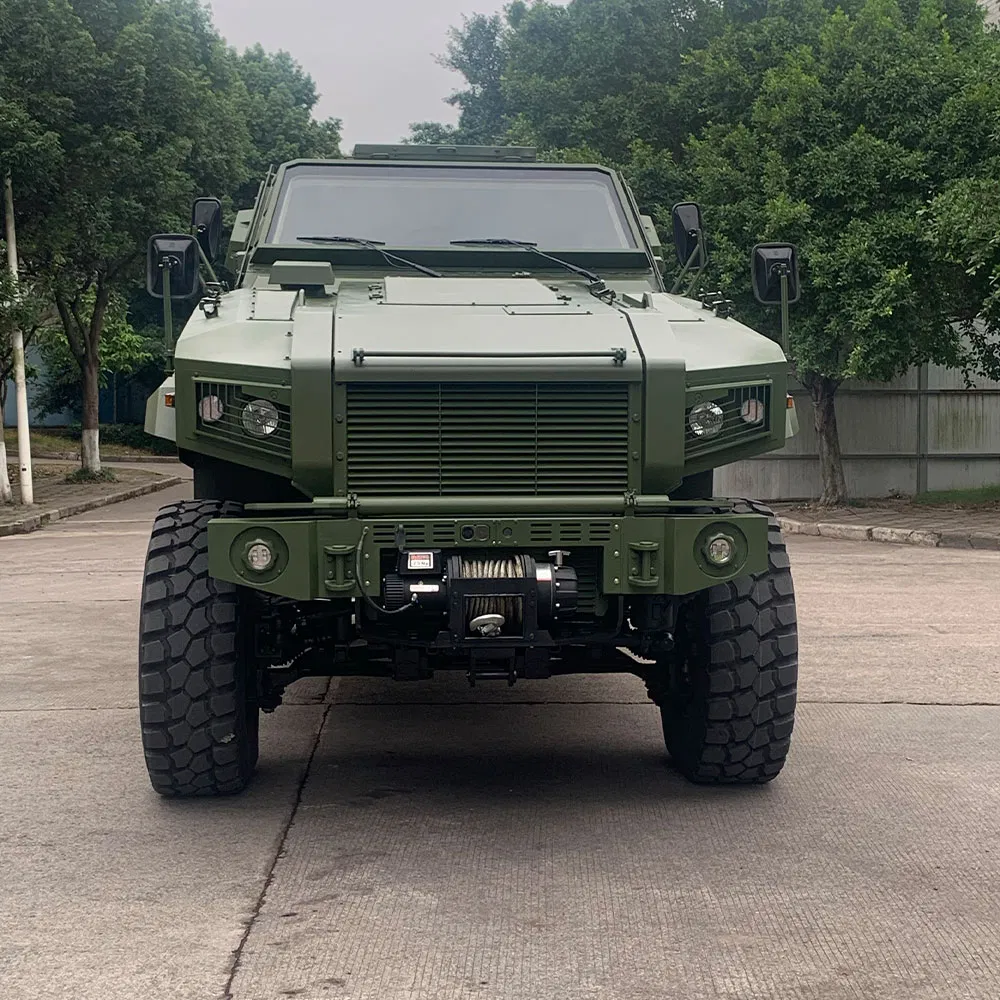

CS-VP14 wheeled high-mobility mine-resistant anti-ambush vehicle
CS/VP144 × 4 high-mobility wheeled mine-protected and ambush-protected vehicle (hereinafter referred to as“High-mobility mine-protected vehicle”) is to meet the demand for mine-protected vehicles in the international military trade market, the development of highly mobile, all-terrain and all-climate adaptable, highly mobile combat vehicles to provide soldiers with resistance to landmines, improvised explosive devices and other threats.
The vehicle is equipped with automatic transmission, independent suspension system, central inflation and deflation system, deflated tires, hydraulic power steering and other systems, so that it has good cross-country mobility and maneuverability, can adapt to multi-terrain (such as desert, jungle, mountain and urban areas, etc.) , all-weather combat environment. At the same time can be added to the communication system, outside the monitoring system, increase the ability of personnel in the car situation awareness; optional automatic fire extinguishing device, used to deal with terrorists deflagration device. The reserved arms seat on the roof can meet the installation requirements of open gun tower, remote weapon station and other vehicle-mounted weapons, which can strongly fight against hostile forces such as terrorists and guerrillas.
Fill in (armored vehicle) according to this form.
Item (the unit is filled in this column) | Parameters | Remarks | |
Basic parameters | Form of drive | 4×4 all-wheel drive | |
Capacity | 2 + 8 | ||
Total combat weight (Kg) | 13500 | ||
Readiness Mass (Kg) | 11500 | ||
Load (Kg) | 2000 | ||
Overall dimensions (mm) | 7100 × 2600 × 2800 | ||
Wheelbase (mm) | 4100 | ||
Engine power (Kw) | 247 kw/2200 rpm | ||
Torque of the engine | 1250 nm/1200-1600 rpm | ||
Transmission | Six-speed hydraulic automatic transmission | ||
Capacity of fuel tank | Main 150L, Auxiliary 85L | ||
Mobility | Maximum speed (Km/h) | ≥105 | |
Minimum turning radius (m) | ≤9.5 | ||
Minimum braking distance (m) | ≤9.5(30 km/h) | ||
Mileage (Km) | ≥700 | ||
Off-road performance | Maximum climb (%) | ≥60 | |
Maximum side slope (%) | ≥30 | ||
Minimum clearance from ground (mm) | ≥420 | ||
Approach angle/departure angle (°) | ≥32 ° | ||
Moat width (mm) | 750 | ||
Vertical obstacle crossing (mm) | 400 | ||
Wading depth (mm) | 900 | ||
Protection performance | Performance of lightning protection | The center of the vehicle bottom can resist 8 kg TNT equivalent explosive, up to NATO 45693b level; the wheel rim can resist 16 kg TNT equivalent explosive, better than NATO 45694A level | |
Ballistic performance | CAN resist 7.62 × 39mm ordinary bullets, bulletproof ability up to NATO 45691 class | Protection against 7.62 × 39mm armour-piercing rounds through increased armour and enhanced bulletproof glass | |
Adaptability to the environment | Operating ambient temperature (°C) | -20ー + 46 | |
Working altitude (m) | 5000 | ||
Repair/maintenance parameters | Mean time between failures | ≥2500 km | |
MTTR mean time to repair | ≤20 min |
